Help with door lock actuator wiring. Make sure to mark which wire is lock and unlock.

Smart Lock Wiring Diagram Wiring Diagrams

Attach one end of your test light to 12v using the vehicles door lock controls activate.

5 wire door lock relay diagram. Welcome to the smd forum. Power door locks and relays. Apr 28 2017 556am.

The diagram posted above does not apply to your truck. 5 wire door lock relay wiring you are welcome to our site this is images about 5 wire door lock relay wiring posted by alice ferreira in 5 category on nov 03 2019. If you are doing a conversion from non power to power locks use the 5 wire to control the other locks.

The actuator on the passenger door cut off the white brown. Heres how the circuit works. Except at the switch in this case both motor legs rest at ground.

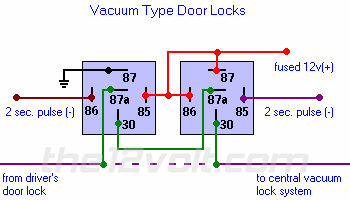

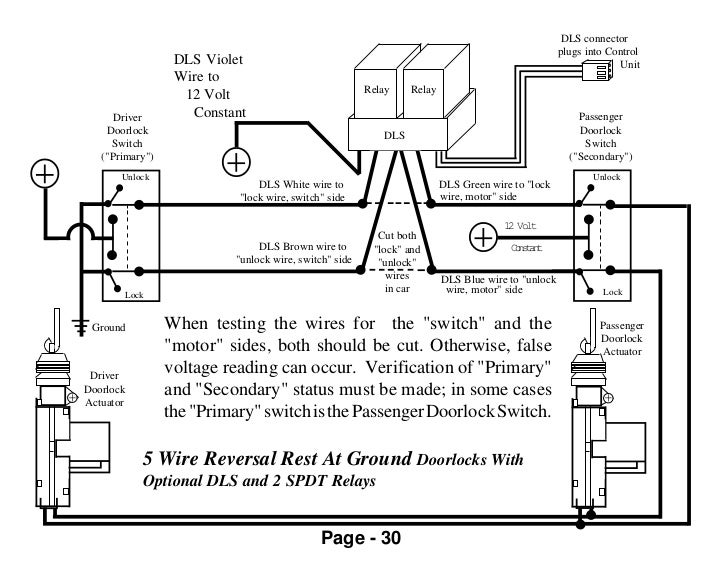

5 wire actuator diagram. Green lock blue unlock. Should you need to add relays for a 3 wire negative type b door lock system use the diagram below.

Most of the newer alarms and keyless entries on the market today have both positive and negative 200 ma door lock outputs that are usually capable of activating the factory relays. There is only the one relay shown in the picture as 1. The door lock relay is located under the center of the dash.

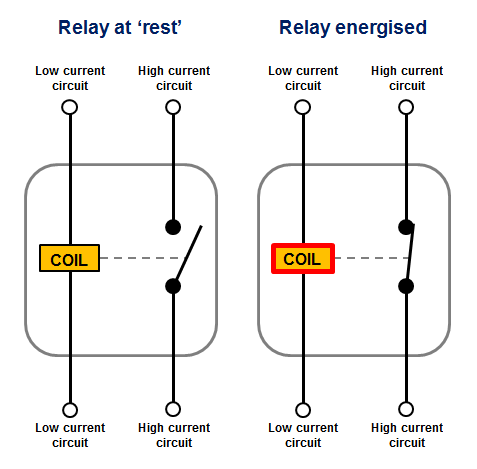

Wire up the relays like your diagram and run it to the blue and green wire on the actuator. The idea here is to add relays that will make the alarms lock and unlock outputs to do the same thing the switch does. Here is where a relay becomes a very versatile controller of sorts.

Type b door lock test most imports some newer fords probe both door lock wires going to the door lock switch these wires are usually located in the drivers kick panel. Nbs started in 1999 for the light duty and 2001 for the 1 ton. In other words the door lock is actuated by reversing the polarity going to the solenoid.

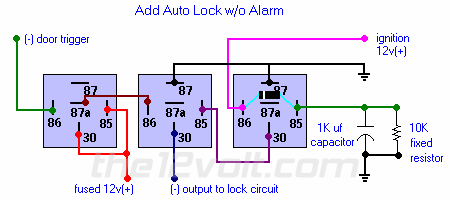

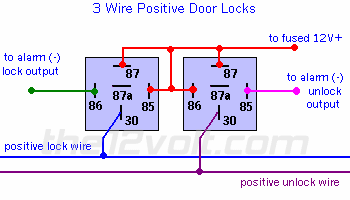

There is either a constant ground or positive wire that makes contact with either the lock or unlock wire when the switch is pushed. Door locks 5 wire alternating 12 volts positive type c relay wiring diagram the switch when moved in either direction applies both power and ground directly to motor legs without the use of any relays. 3 wire door locks can be either positive diagram below or negative.
